Equipment introduction and use

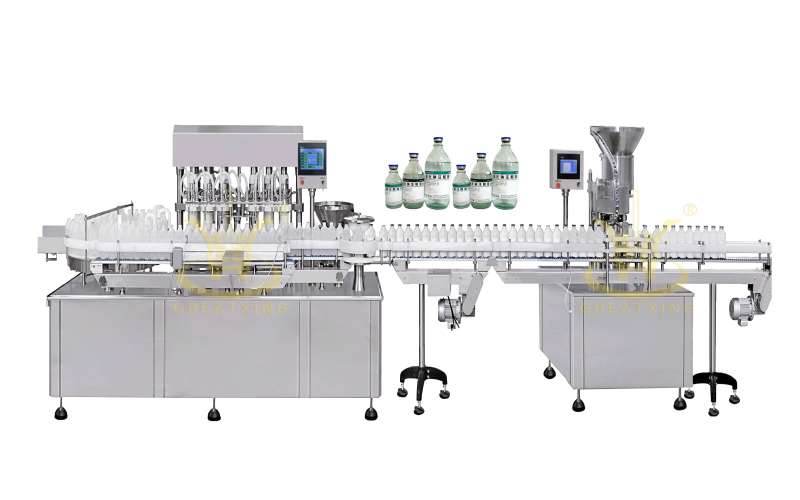

This equipment production line by the rotating disc for bottle machine, filling machine, gasser rolling unit, can match labeling machine wire production, mainly used in pharmaceutical enterprises and large capacity injection production line (agent), filling of veterinary drugs, chemical packing products.
The characteristics of
1. Painted surface adopts SUS304 stainless steel material, contact material parts adopt SUS316L high quality stainless steel, in line with the GMP requirements;
2. Taken the product design and reasonable structure, high automation, stable running, low noise, easy maintenance;
3. Taken the high production efficiency, high pass rate, small energy consumption;
4. U the whole production line operation chain control, convenient production, can be stand-alone operation control, more humanized and convenient production.
Technical parameters
| The serial number | Name | parameter |
1 | Applicable specifications | 50~500ml |
| 2 | Production capacity | 30 ~ 50 bottle/min |
| 3 | Filling accuracy | ≤±1% |
| 4 | Percent of pass | ≥99.5% |
| 5 | Electrical source | 220V 50Hz |
| 6 | Gas source | 0.5-0.8MPan |
| 7 | Work rate | 3kw |
| 8 | Machine net weight | ≈800kg |
| 9 | Overall dimensions | L5000xW1600xH1680mm |
